Posts and Post with base

Standard Components

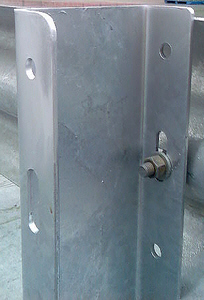

All posts are manufactured by ARMCO®  Barriers and are punched both sides (see picture) for convenience and to ensure quick and efficient installation of guardrail - Railgard™.

Standard Single Height Post with Base Plate

Standard Post Profile

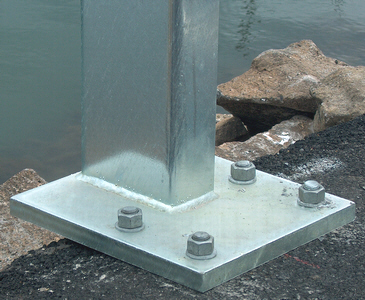

Post with Base Plate - Edge Mounted

Standard Post with Base

Post hole Centres at 1m.


Standard Posts with Base Plate have the post attached at the centre of the baseplate, however, edge mounted Posts with Base Plate can be designed to suit specific site requirements (above).

All standard posts are manufactured for standard single height Armco

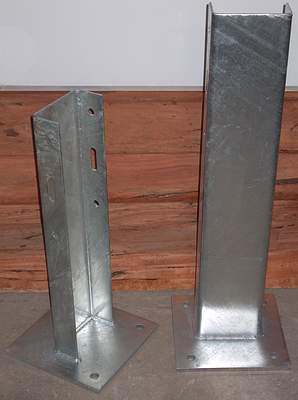

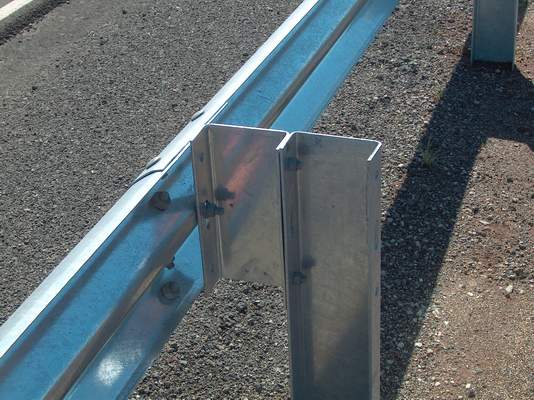

® guardrail -Railgard™ but are also available as double and triple height (as shown in the table below). Double and Triple height posts can be drilled at heights to suit your application. Posts may also be supplied and installed at various spacing or post hole centres depending on the impact resistance required. (see photo)

All posts can be supplied with a baseplate if required, for fixing to concrete. The standard Armco®  Barriers baseplate is 300 x 300 x 12 mm thick, with holes for up to 22mm Dyna bolts or Chemsets at 220mm centres. Other base plate sizes can be provided upon request and hole spacing's can be modified to suit your particular project or designed by our design department.

Part No.

Description

Single Height
Code

Double Height
Code

Triple Height
Code

XP0.7

Standard Post x 0.7m x 6mm

XP0.7

-

-
XPWB.7 Post with Base x 0.7m x 6mm XPWB.7SH - -

XP0.9

Standard Post x 0.9m x 6mm

XP0.9 - -
XPWB.9 Post with Base x 0.9m x 6mm XPWB.9SH XPWB0.9DH -

XP1.1

Standard Post x 1.1m x 6mm

XP1.1

-

-
XPWB1.1 Post with Base x 1.1m x 6mm XPWB1.1SH XPWB1.1DH -

XP1.3

Standard Post x 1.3m x 6mm

XP1.3

-

-
XPWB1.3 Post with Base x 1.3m x 6mm XPWB1.3SH - XPWB1.3TH

XP1.6

Standard Post x 1.6m x 6mm

XP1.6

-

-

XP1.8

Standard Post x 1.8m x 6mm

XP1.8

XP1.8DH

XP1.8TH
XPWB1.8 Post with Base Plate x 1.8m x 6mm XPWB1.8SH XPWB1.8DH XPWB1.8TH
XPWB2.1 Post with Base Plate x 2.1m x 6mm XPWB2.1SH - XPWB2.1TH

XP2.1

Standard Post x 2.1m x 6mm

XP2.1

XP2.1DH

XPT.1TH

XP2.4

 Standard Post x 2.4m x 6mm

XP2.4

XP2.4DH

XP2.4TH
